RS-232C Serial Interface Card Connectivity
  • RS-232C Serial Interface Card Connectivity

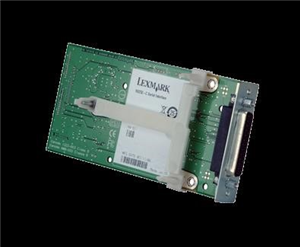

RS-232C Serial Interface Card Connectivity

Item Code: 14F0100

  • The RS-232C Serial Interface Card installs into the printer's internal port
  • It supports a standard RS-232C interface using a 25-pin D-shell female connector
  • For use with Lexmark printers that contain an open slot
  • Configuration settings for the serial interface are available using the Serial Opt Menu from the printer's operator panel
  • Baud rates from 1200 to 115.2K are supported
  • Baud rates:1200, 2400, 4800, 9600*, 19.2K, 38.4K, 57.6K and 115.2K; 7 bit or 8* data bits; Parity - Odd, Even, None*, Ignore; Start and Stop Bits; DSR/DTR Data Flow control with DTR pacing, DTR/DSR, XON/XOFF, XON/XOFF/DTR, or XON/XOFF/DTR/DSR flow control protocols
  • * indicates factory defaults
  • RS-422 is not supported.

$153.47

Add

Note: Prices include GST (where applicable)
